Installing an automatic gate is one of the best upgrades you can make to your property. It adds security, curb appeal, and convenience — all in one. But the success of your gate installation depends heavily on how well your driveway is prepared beforehand.
Whether you’re installing a sliding gate or a swing gate, a little planning upfront saves you from costly delays and rework down the line.
Measure Your Driveway Opening Accurately
Before anything else, you need precise measurements of your driveway entrance. The width of the opening determines whether a single or double gate panel is needed, and it directly affects the type of operator and hardware required.
Here’s what to measure:
- Gate opening width — measure from post to post (or where posts will be installed)
- Setback space — for sliding gates, you need clearance alongside the driveway equal to the gate’s full width; for swing gates, measure the arc the gate will travel
- Ground slope — note any incline or decline, as uneven terrain requires specific hardware solutions
If you’re unsure which gate style fits your layout, our article on 7 Considerations When Installing a Driveway Gate covers the key factors that guide this decision.
Check the Ground Surface and Drainage
The surface your gate runs on or sits above must be stable and level. Soft, uneven, or poorly drained ground can cause alignment issues over time — and potentially damage the gate motor and tracks.
Steps to take before installation day:
- Fill any cracks or depressions in concrete or asphalt near the gate entry
- Check for drainage issues — standing water near the gate posts can erode foundations and rust hardware
- Level the threshold area if there’s a noticeable slope at the gate’s closing point
In Ontario’s climate, freeze-thaw cycles are a real concern. Properly compacted and sealed ground helps prevent frost heave from shifting your gate posts over winter.

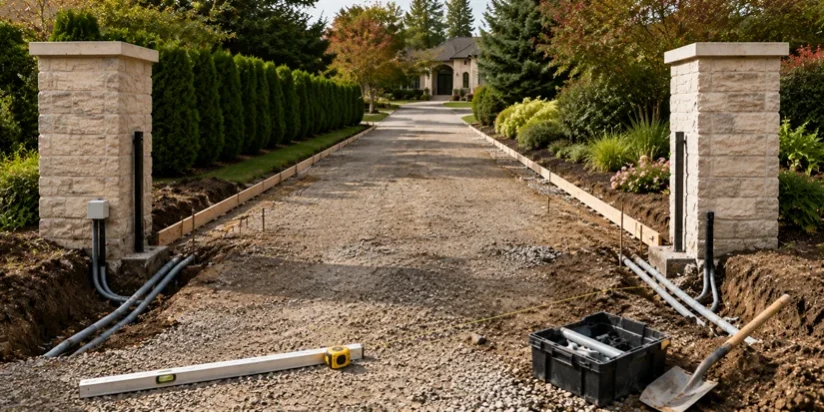

Plan the Electrical Supply and Conduit Routing
Automatic gates need a reliable power source. If you don’t already have an outdoor electrical circuit near the driveway, this needs to be arranged before installation day — ideally by a licensed electrician.
Key electrical prep tasks:
- Run a dedicated 120V circuit (or 240V depending on the motor) to the planned gate operator location
- Install conduit in the ground for wiring before any concrete or paving work is done
- Plan the route for any intercom system wiring if you’re adding an access control system alongside the gate
Adding an intercom? Read our guide on essential considerations for selecting an intercom system to plan that side of the project in advance.
Confirm Post Placement and Structural Requirements
Gate posts are the backbone of any automatic gate system. They must be set in concrete to the correct depth and positioned precisely — once they’re set, adjustments are difficult and expensive.
For most residential installations in the GTA:
- Posts should be set in concrete at least 36–48 inches deep, deeper in frost-prone areas
- Post diameter and material must match the gate weight and operator specifications
- Clearance between posts needs to account for the gate hardware, not just the gate panel itself
If you’re planning a swing gate specifically, our article on essential requirements for installing an automatic swing gate goes into the structural requirements in more detail.
Obtain Any Required Permits
In Ontario, installing a fence or gate structure may require a building permit depending on your municipality and the height or type of structure. It’s always a good idea to check with your local municipal office before breaking ground.
According to the Ontario Building Code, fences and gates on residential properties may be subject to local bylaws regarding height, placement relative to the property line, and materials.
Taking care of permits ahead of time prevents work stoppages and ensures your installation is fully compliant.
Clear the Work Area
On installation day, your installer needs clear, unobstructed access to both sides of the driveway entrance. This seems straightforward, but many installations are delayed because the work area isn’t ready.
Before your installer arrives:
- Remove any vehicles, bikes, or equipment parked near the driveway entrance
- Trim back shrubs, hedges, or overhanging branches near the gate opening
- Ensure the path for conduit trenching is accessible and free of landscaping features
- Have the electrical panel accessible if new circuits need to be connected
Work with a Professional from the Start
Proper driveway prep sets the stage for a smooth, long-lasting installation — but even the best prep can only go so far without expert execution. A qualified installer will assess your site conditions, recommend the right gate style and operator, and handle the technical aspects safely.
